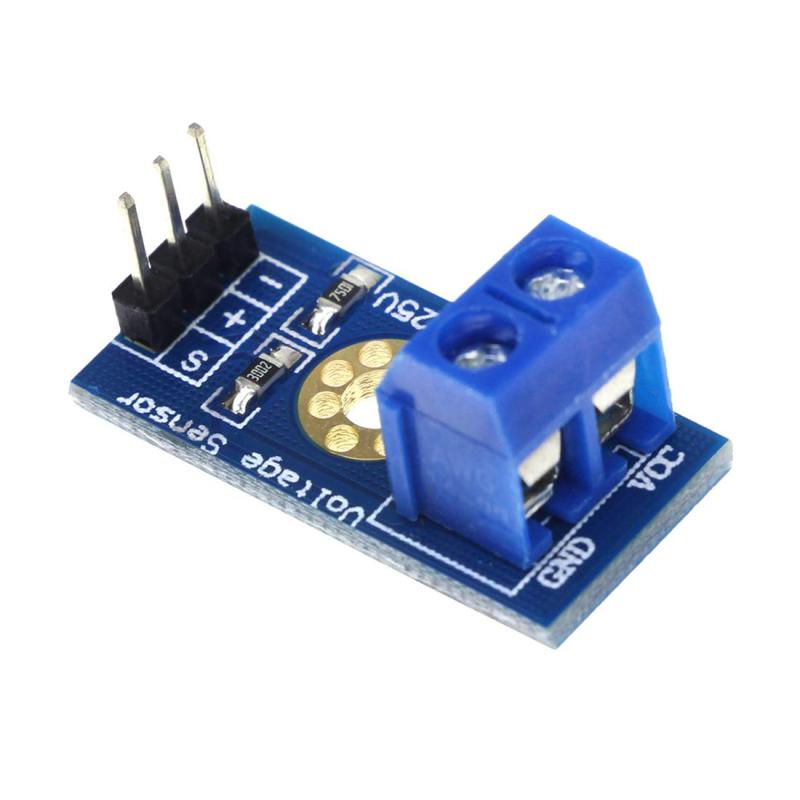

The DC Voltage Sensor Module is a simple yet powerful tool for measuring DC voltages in electronic projects. It uses a resistive voltage divider to reduce the input voltage to a safe level for microcontroller ADC (Analog-to-Digital Converter) pins, making it ideal for monitoring battery levels, solar panel outputs, or other DC circuits.

It’s compatible with Arduino, ESP8266, ESP32, Raspberry Pi (via ADC), and other development boards. Simply connect the module’s output to your controller’s analog input, and you can read real-time voltage values in your program.

Features:

• Measures DC voltages up to 25V

• Easy to use with Arduino and other microcontrollers

• Based on voltage divider circuit

• Compact PCB design

• Lightweight and durable

Specifications:

• Input Voltage Range: 0 – 25V DC

• Output Voltage Range: 0 – 5V (scaled)

• Voltage Divider Ratio: 5:1

• Measurement Accuracy: ±0.1V (after calibration)

• Dimensions: ~28 × 14 mm

• Interface: 3-pin (VCC, GND, Signal)

Applications:

• Battery voltage monitoring

• Solar power systems

• Robotics and automation

• DIY electronics projects

• Sensor data logging
